Description

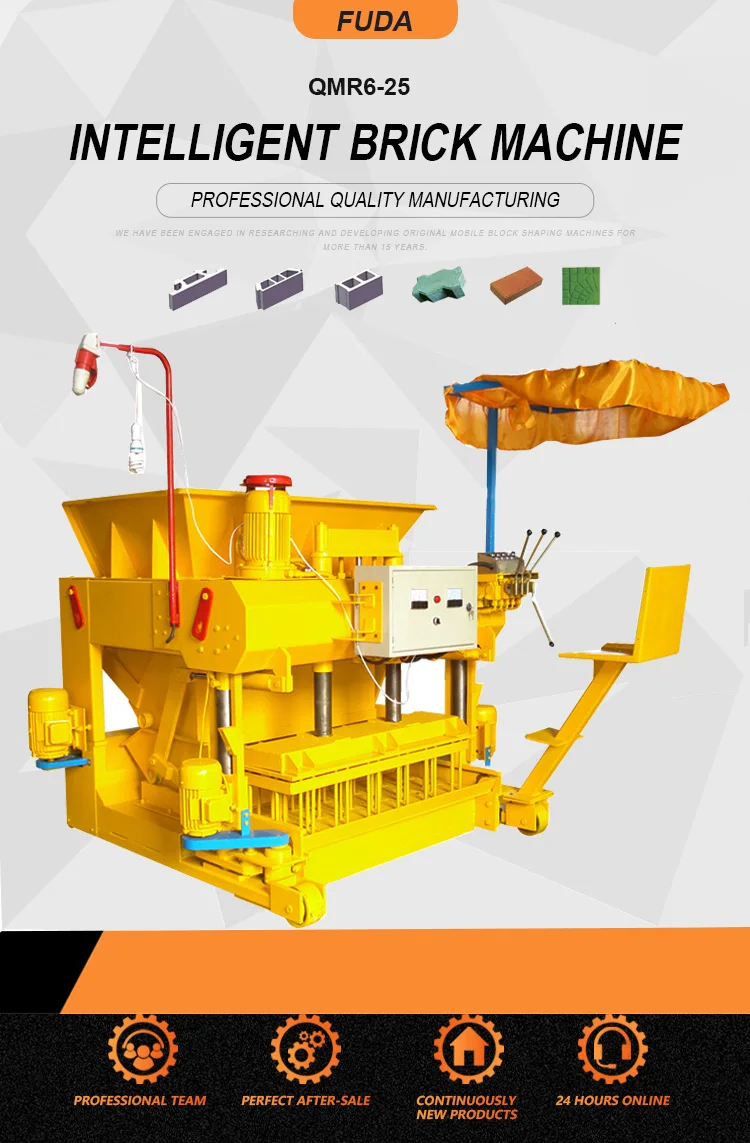

QMY6-25 Movable Hydroform Egg Laying Hollow Block Making Machine in Senegal
Main features of QMY6-25 Movable Automatic hydraulic block machine
1).the block machine is low cost and high profit and with bit product capicity.
2).the block machine is durable and effective
3)the block machine quick in forming blocks and easy in operating.
4)the block machine can produce blocks on anywhere level ground,not pallet need.
5) Perfect after-sale service for the concrete hollow block making machine
Main parameter of QMY6-25 movable concrete hollow block machine:
| Dimention of block machine | 2000*1800*1600mm |
| Demold method | Hydraulic |
| Turning method | Hydraulic |
| Hydraulic system pressure | 12-14MPA |
| Excitation frequency | 3200hz |
| Total power | 9.6KW |
| Total mass | 2250KG |
| Molding cycle | 15-25s |
| Molding | 6pcs/mold (400*200*200/390*190*190) |
| Product capacity | 6800pcs/8H |
| Hydraulic oil tank | 24L |
| Moving method | Electricity move and hydraulic turn |
| Excitation way | Three-dimensional box excitation |
| Raw material | Crushed stone,sand,cement,dust and coal fly ash,cinder,slag,gangue,gravel,perlitle and industial wast. |
Product capacity of QMY6-25 movable concrete hollow block machine:
| Concrete Hollow Block size(mm) | Pcs/mold | Pcs/hr | Pcs/8hr |
| 400*200*200 | 6 | 864pcs | 6800pcs |
| 400*150*200 | 8 | 1152pcs | 9200pcs |
| 400*250*200 | 4 | 576pcs | 4680pcs |
Related block machine recommend:
|
QT4-15 hydraulic block machine |
QT4-18 Automatic hydraulic brick machine |
QT4-24b Semi auto block machine |

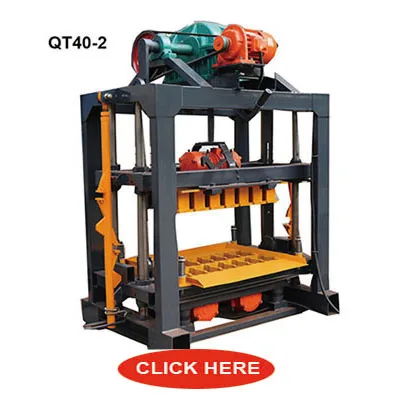

QT40-2Manual block machine |
