Description
1.We can also provide you with detailed and extensive knowledge about your specific machine. With our technical advice, your machine life can be signifcantly extended !
2.We have a global network of distributors, whatever you are, we can provide you with fast delivery and service
QT40-3A Small Movable Cement Solid Brick Maker Hydraulic Egg Laying Concrete Block Machine Price
1.QT40-3a manual brick machine factory production flow
a). Raw material: use hopper trolley delivery into mixer; need 1-2 workers
b). Mixer: Mixing and produce concrete;
c). Hollow block machine: Forming blocks, need 1 worker
d). Curing area: Curing need 10-15 days; need 1 worker
e). Sell blocks: Sell blocks and management; 1 worker
Total need about 4-5 workers in QT40-3Ahollow block machine factory.
Factory area at least 600sqm, need at least 500sqm cement floor work area
2.QT40-3A manual Block Production line
(1)QT40-3A manual brick production line introduce
| A |
QT40-3A Host machine
|
| B | JQ350 Mix,Power,7.5KW |
(2)QT40-3A manual brick plant technical information:
| QT40-3A Host machine total power | 6.7KW |
| Molding cycle | 40s |
| Vibration frequency | 2000HZ |
| Vibration force | 50KN |
| Host brick machine size | 1800*1400*1100mm |
| Weight | 800KGS |
| Pallet size | 800*400mm |
3.QT40-3A block machine production capacity:
| Item | Block | Production capacity | Photo |
| 1 |
Hollow/Solid block 400-200-200mm |
4 blocks /mold 2560 blocks/8h |
 |
| 2 |
Hollow/Solid block 400-150-200mm |
5 blocks /mold 3200 blocks /8h |
|
| 3 |
Hollow/Solid block 400-100-200mm |
7 blocks /mold 4480 blocks /8h |
|
| 4 |
Hourdis block 500-120-200mm |
6 hourdis /mold 3840 hourdis pcs/8h |
 |

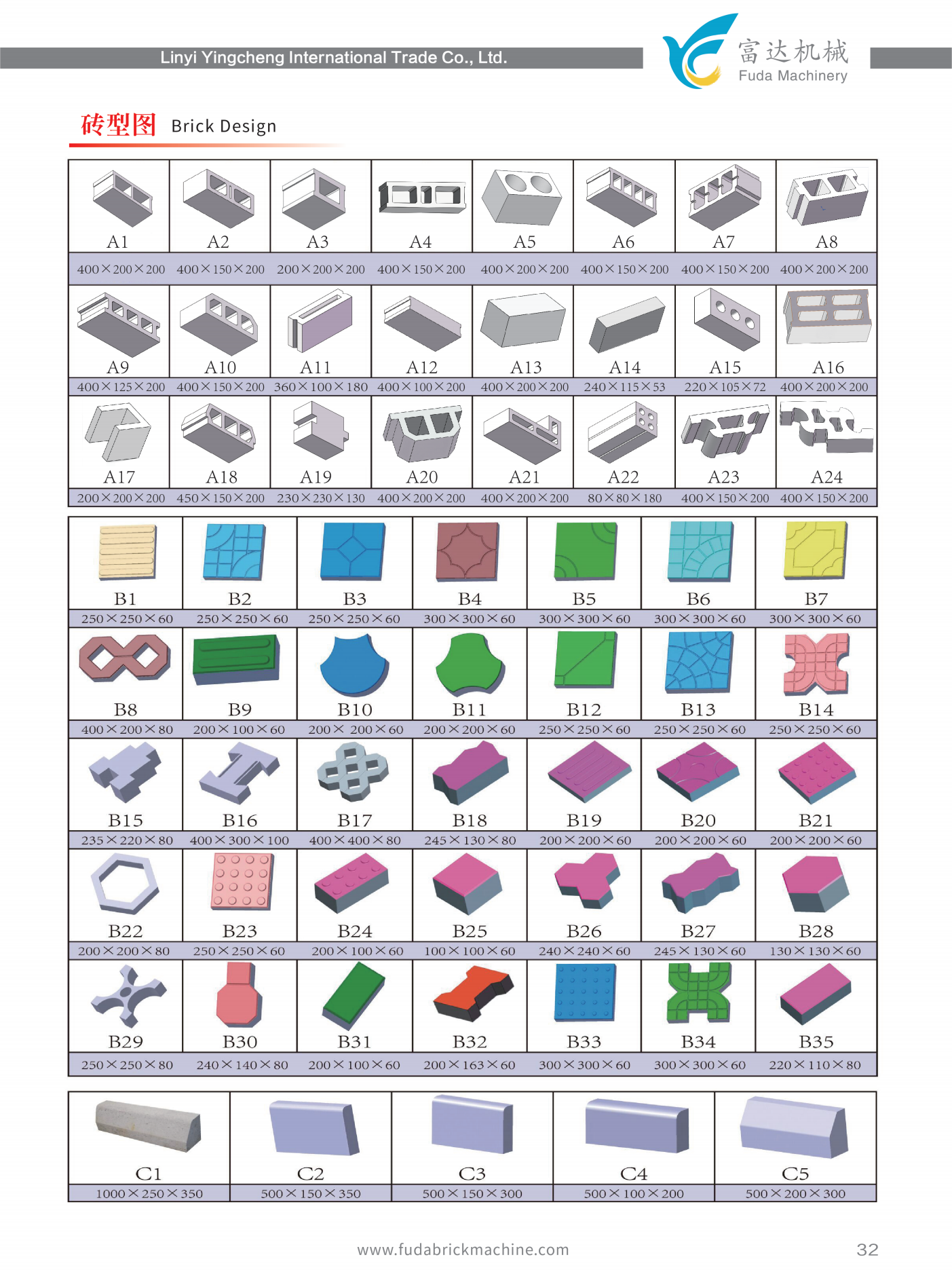

Block and Paving Brick Design for your reference:
4.Block machine video link and size
| QT40-3A block machine video link | https://www.youtube.com/watch?v=h_f-Pwugsqw |
| QT40-3B block machine video link | https://www.youtube.com/watch?v=3-GvDf2rCnA |
| QT40-3C block machine video link | https://www.youtube.com/watch?v=3V6VVKUT4fU |

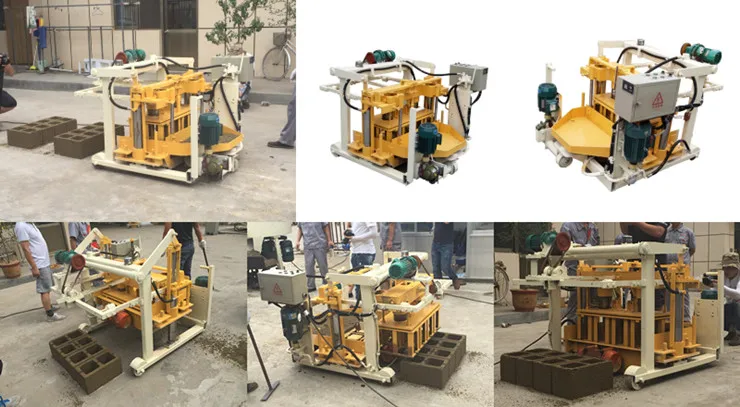

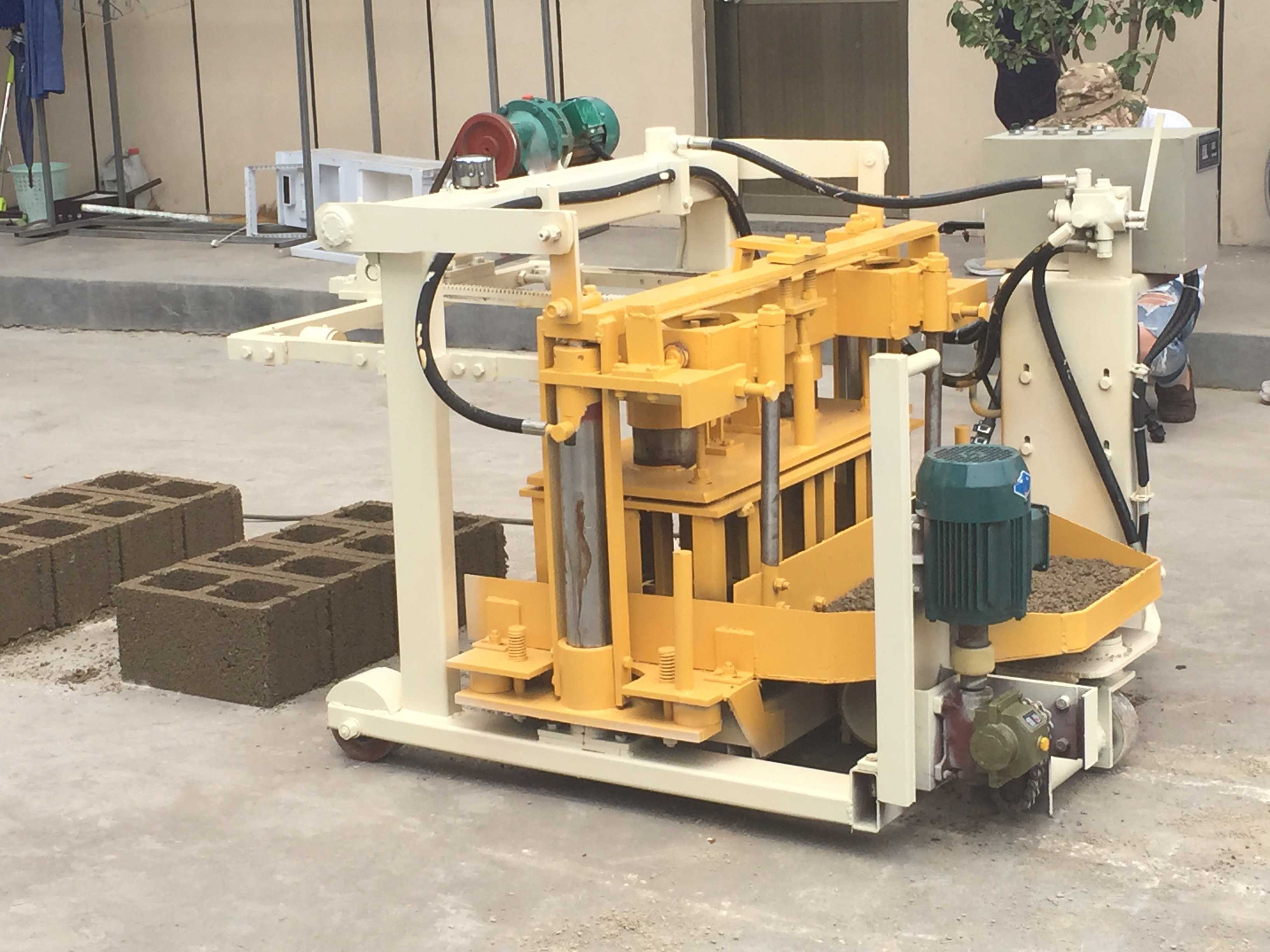

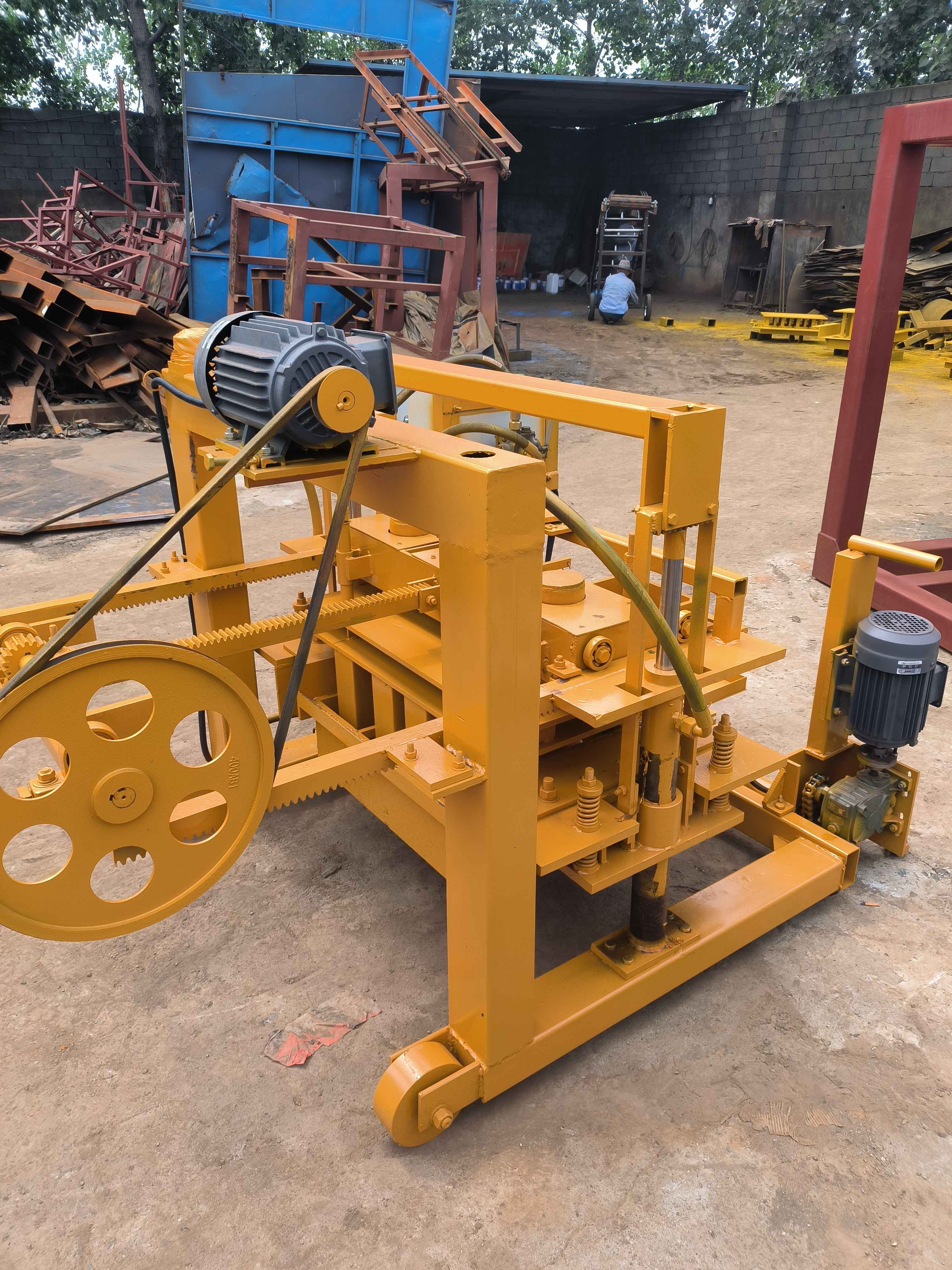

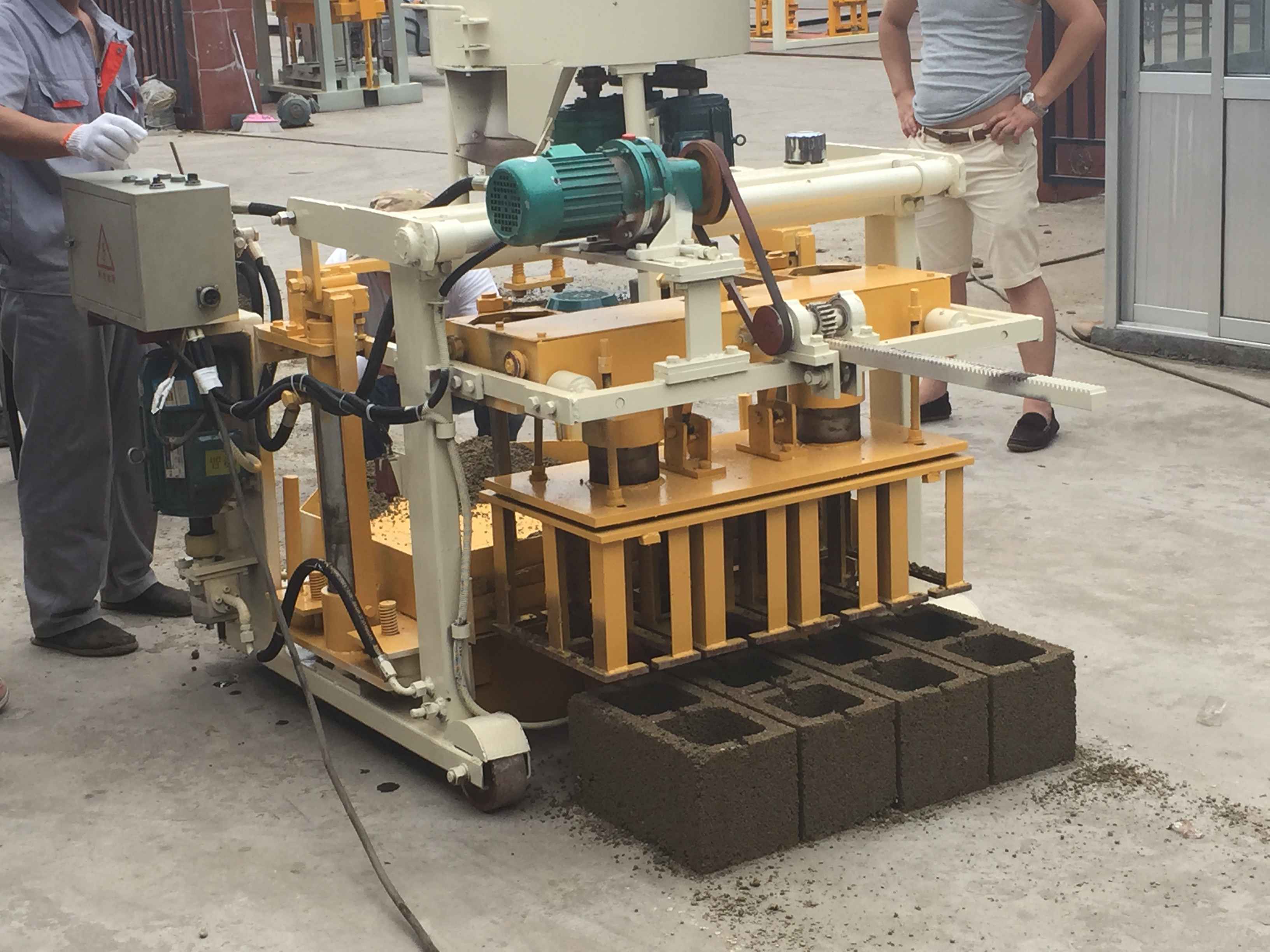

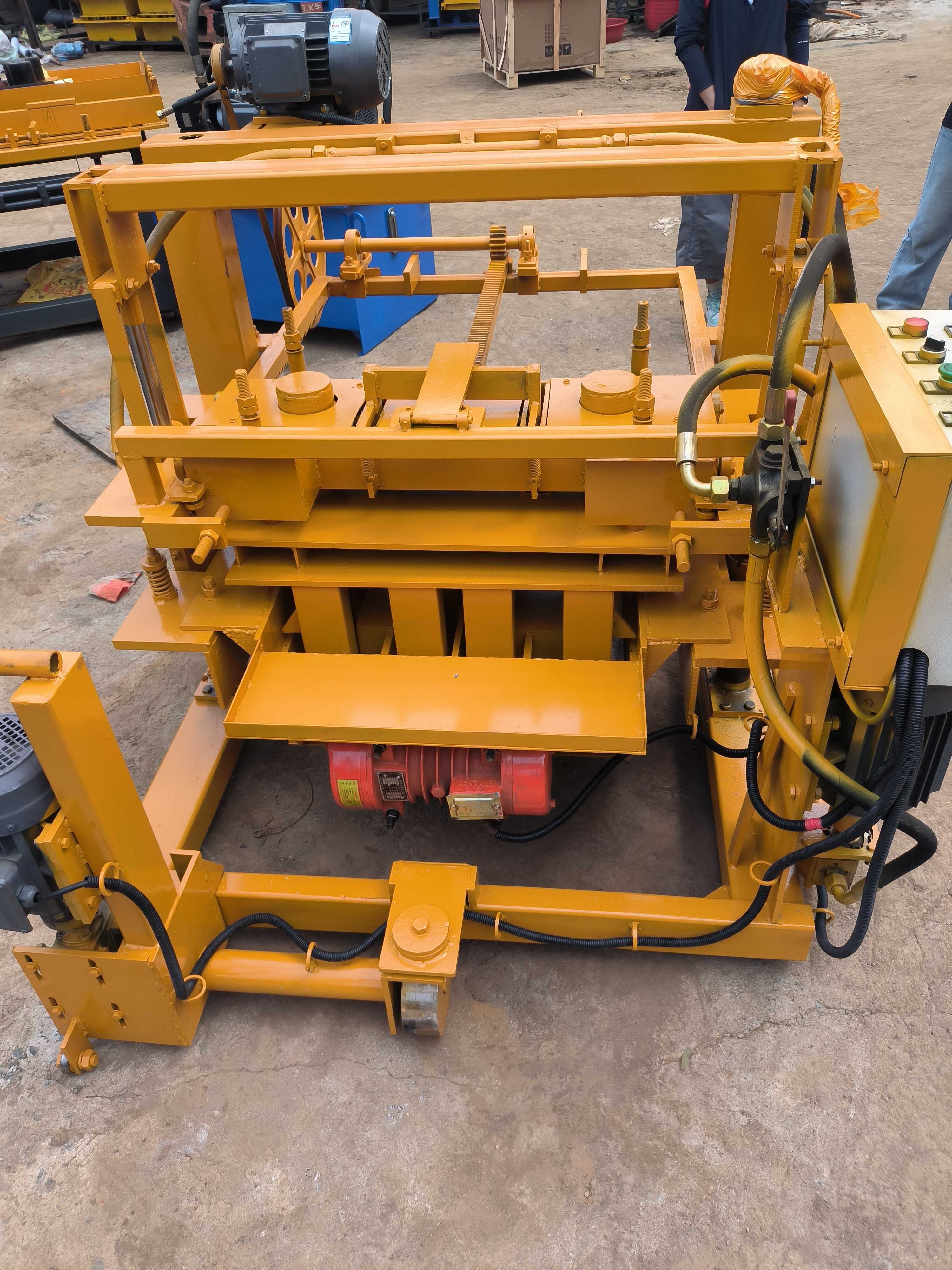

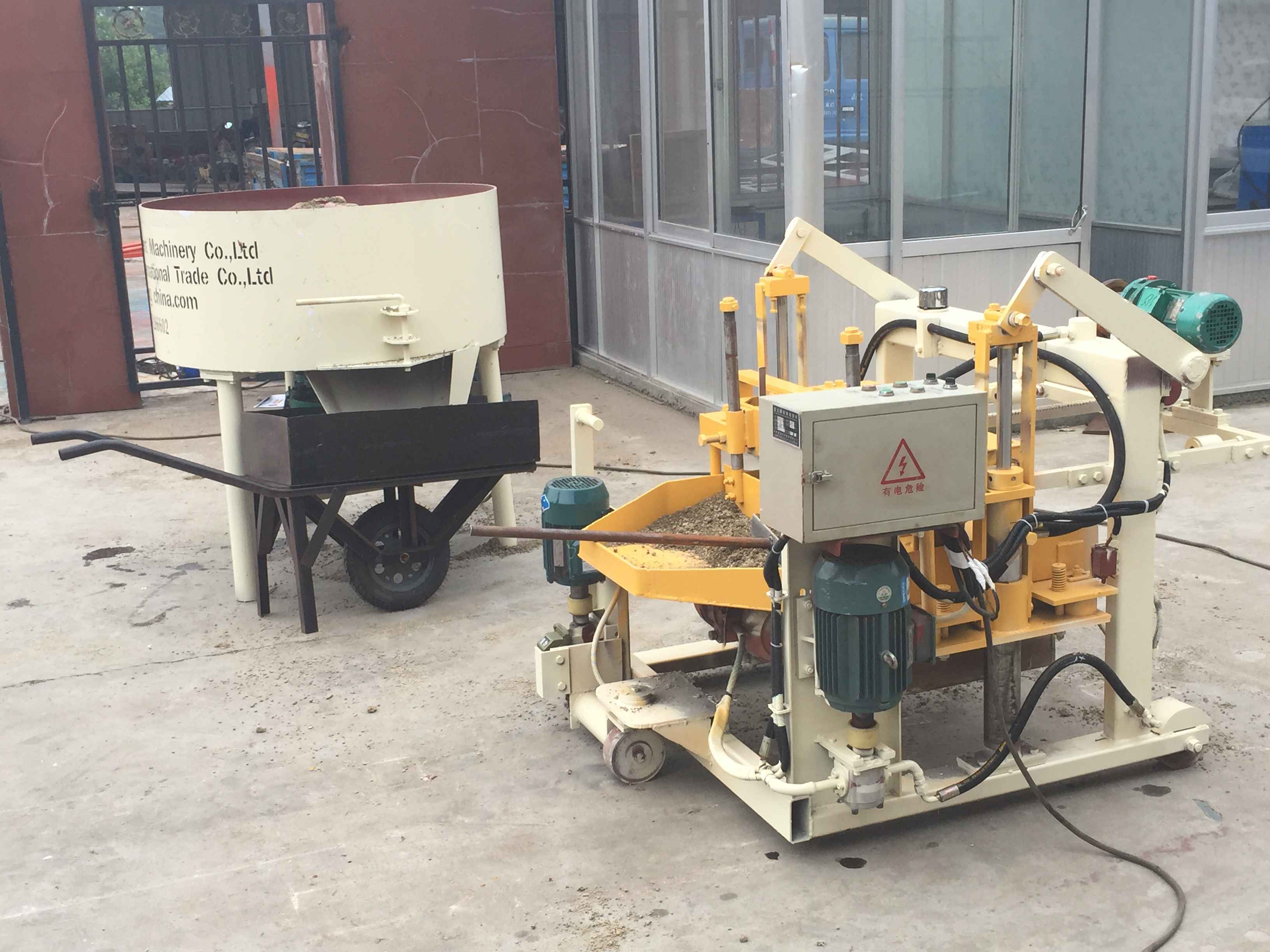

5.QT40-3a Brick machine photo
6.Feedback from customer who visit factory
7.Block machine service
Pre-Sales Service:
1. Inquiry and consulting support.
2.Sample testing support.
3. View our Factory.
After-Sales Service:
1.Training how to instal the machine, training how to use the machine.
2. Engineers available to service machinery overseas.
3.We will reply you for your inquiry in 24 hours.
4.After sending, we will track the products for you once every two days, until you get the products.
When you got the machine test them, and give me a feedback.
If you have any questions about the problem, contact with us, we will offer the solve way for you
8.Related block machine recommend:
| QT4-18 Block machine | QT4-24 Brick machine |
QT4-10 Interlock block machine |
QT40-2 Brick machine |
| 6400pcs/8h | 6400pcs/8h | 14400pcs/8h | 2880pcs/8h |
 |
 |
|
|
