Description
Product Overview
lowest Price China Direct factory Brick Making Machinery
We are the direct brick making machine factory, offer all kinds of block machinery with the lowest price, including fly ash hollow block making machine maker, cement and adobe mold new machine for small business ideas, moulding clay extruder egg lays machines, red brick interlock hydraulic automatic brick Production Line, portable back small cheap machines to make money, manul lego flyash powder paving stone machine .
FEATURES AT A GLANCE
We have all kinds of machines that can meet your needs
and also can do the customazition.
PRODUCT SPECIFICATIONS
1.QT4-25 brick machine factory production description
1). Raw material: use hopper trolley delivery into mixer; need 2 workers
2). Mixer: Mixing and produce concrete, then conveyor delivery concrete to block machine hopper; need 1 worker
3). Hollow block machine: Forming blocks, then delivery to stacker by block receiver; no need workers
4). Maual forklift trolley: delivery new blocks to curing area; need 2 workers
5). Curing area: Curing need 10-15 days, then take blocks out from pallet; need 1-2 workers
6). Trolley: delivery pallet to hollow block machine area; need 1 worker
7). Sell blocks: Sell blocks and management; 1 worker
Total need about 7-8 workers in QT4-25 hollow block machine factory.
1). Raw material: use hopper trolley delivery into mixer; need 2 workers
2). Mixer: Mixing and produce concrete, then conveyor delivery concrete to block machine hopper; need 1 worker
3). Hollow block machine: Forming blocks, then delivery to stacker by block receiver; no need workers
4). Maual forklift trolley: delivery new blocks to curing area; need 2 workers
5). Curing area: Curing need 10-15 days, then take blocks out from pallet; need 1-2 workers
6). Trolley: delivery pallet to hollow block machine area; need 1 worker
7). Sell blocks: Sell blocks and management; 1 worker
Total need about 7-8 workers in QT4-25 hollow block machine factory.

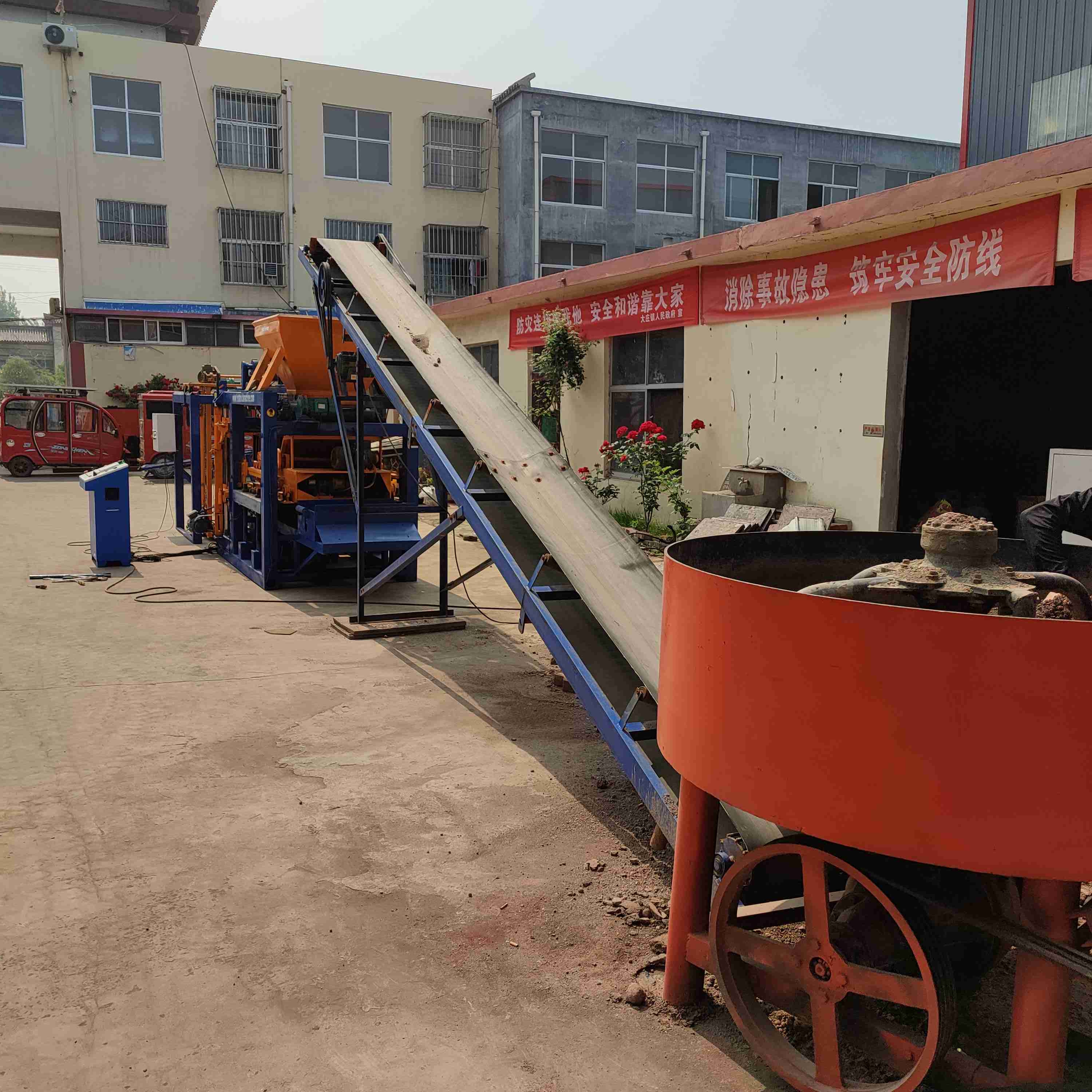

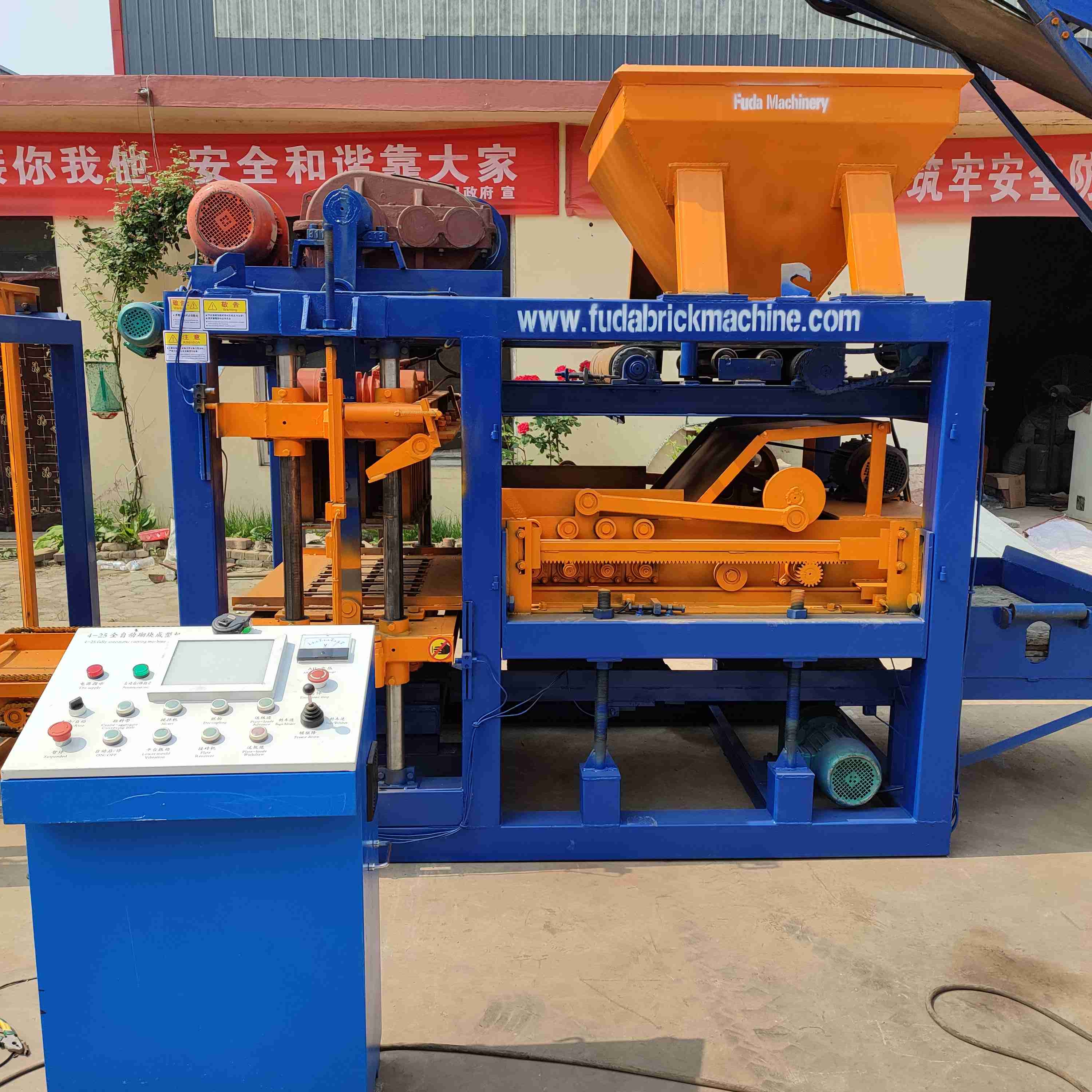

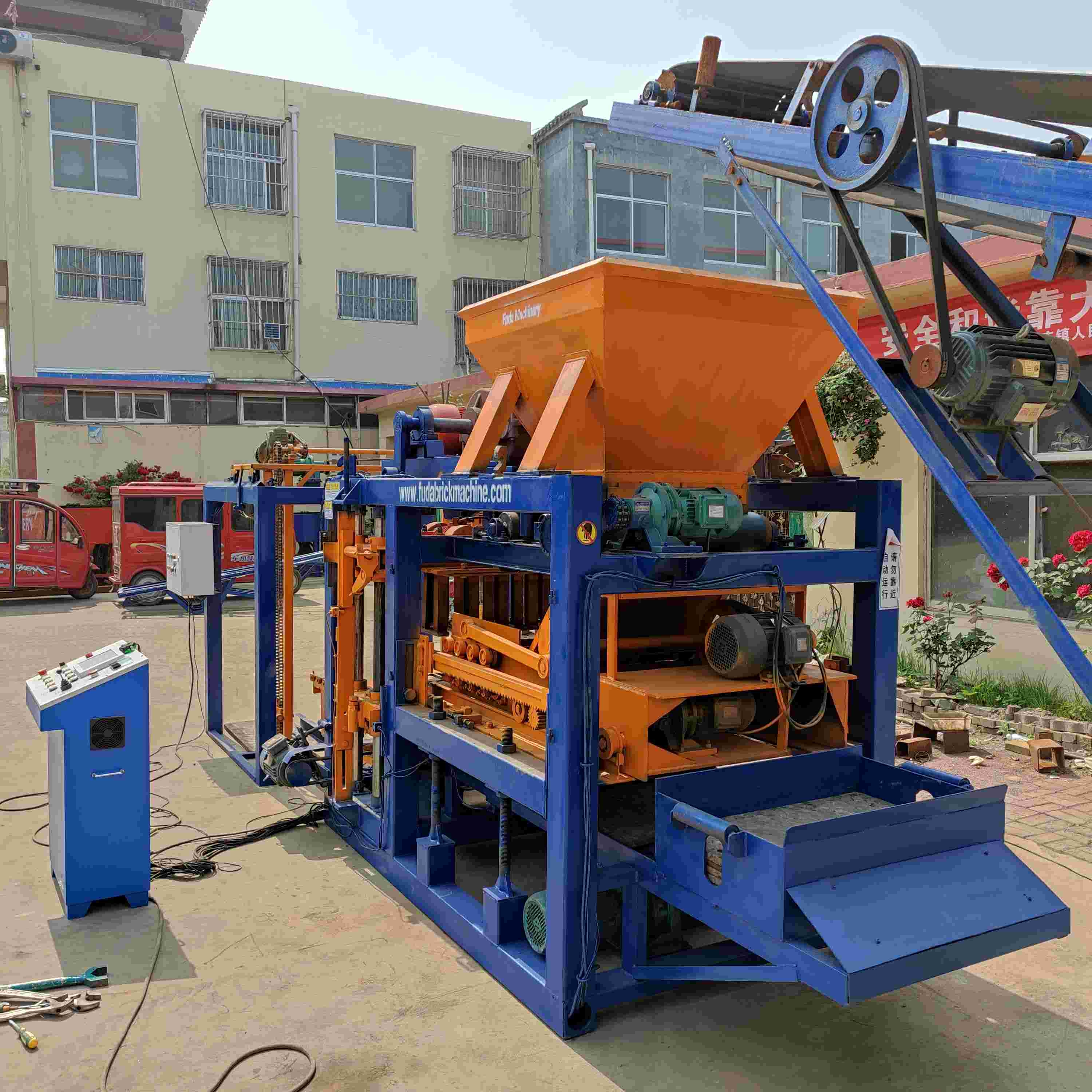

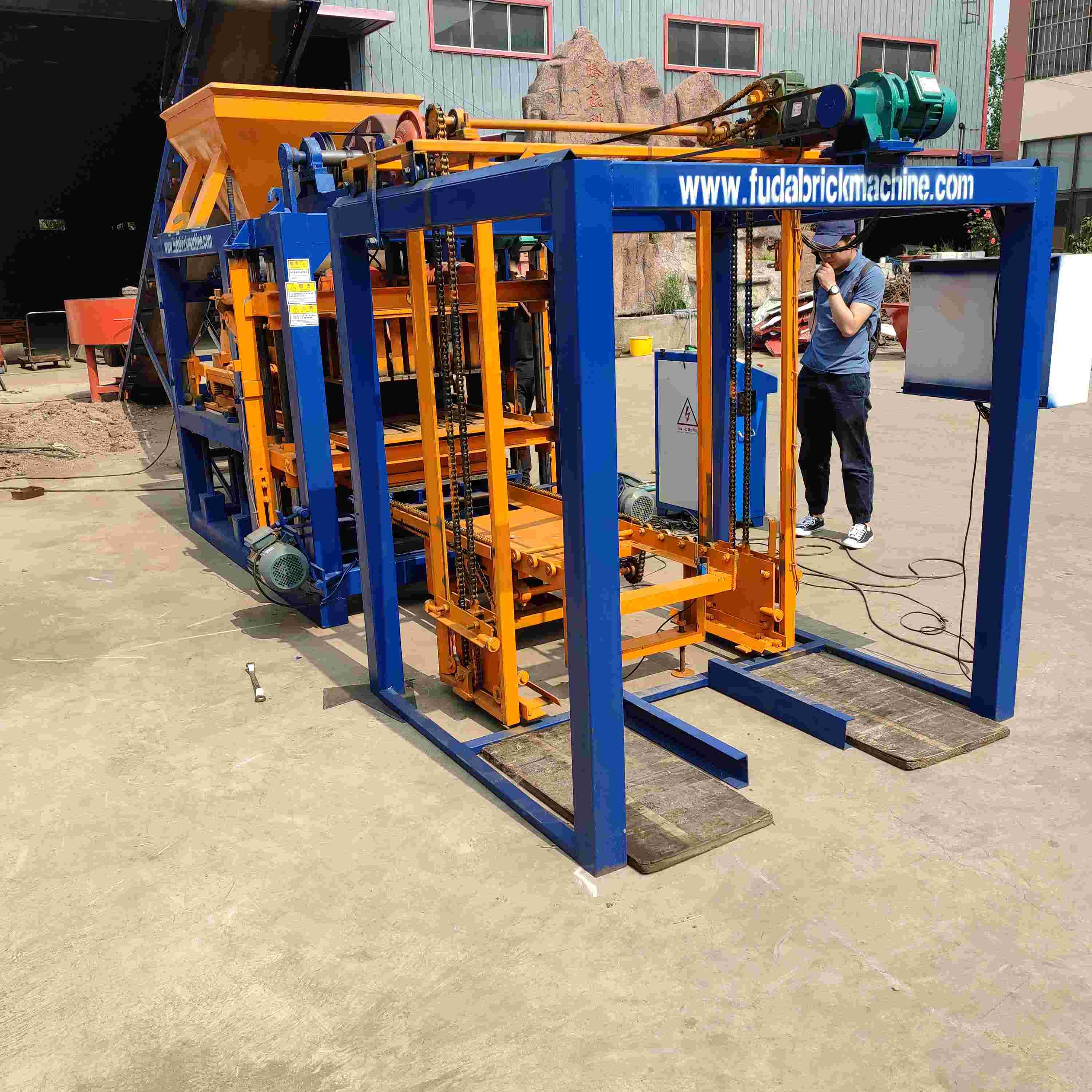

2.QT4-25 Automaticbrick production line introduce
A |
JQ500 Mixer power,11KW |
QT4-25 Host machine total power |
18.6KW |
|
B |
6m conveyor |
Molding cycle |
20s |
|
C |
Stacker, it could layer 2-3 pallets blocks |
Vibration frequency |
4000-4800HZ |
|
D |
6m conveyor |
Vibration force |
50-60KN |
|
Color feeder system (Optional) |
QT4-25 Color feeder machine--Automatic hydraulic machine |
Host brick machine size |
3410*2200*2100mm |
|
Color mixer--1.2m; 7kw |
Weight |
4000KGS |
||
6m conveyor |
Pallet size |
850*550mm |
Item |
Block |
Production capacity |
Photo |
1 |
Hollow/Solid block 400-200-200mm |
4 pcs/mold 4608 pcs/8h |
|
2 |
Hollow/Solid block 400-150-200mm |
5 pcs/mold 5760 pcs/8h |
|
3 |
Hollow/Solid block 400-100-200mm |
7 pcs/mold 8064 pcs/8h |
|
4 |
Houdi block 450-120-200mm |
6 pcs/mold 6912 pcs/8h |
|
5 |
S shape paver 225-112.5-60mm |
12 pcs/mold 13824 pcs/8h |
|
6 |
I shape paver 200-160-60mm |
8 pcs/mold 9216 pcs/8h |
|
7 |
Holland paver 200-100-60mm |
12 pcs/mold 13824 pcs/8h |
Product Specification of automatic/ manual interlocking cement solid clay block/brick making machine QT4-25
ALL THE KEY PARTS ARE HEAT TREATED
MORE HARDER AND DURABLE!
SIMENS Programmable Logic Controller
